The search for a single “unbreakable” material often leads to polycarbonate. While its properties are remarkable, true architectural security is not achieved by simply swapping glass for a plastic sheet. Effective protection relies on a patented, engineered system that enhances existing glazing to defeat threats without compromising the building’s original design. Understanding the science of polycarbonate, including its strengths and inherent weaknesses, is the first step in specifying a truly effective security glazing system.
The Molecular Advantage of Polycarbonate
Polycarbonate’s exceptional durability is rooted in its molecular structure. Unlike glass, which has a rigid, amorphous atomic structure that shatters on impact, polycarbonate is a polymer. Its long, interconnected molecular chains allow it to flex and deform under stress, absorbing and dissipating kinetic energy rather than fracturing.
A comparison to other common glazing materials highlights its unique advantage:
- Annealed Glass: This material is brittle and shatters into large, dangerous shards. It possesses very little ability to absorb impact energy.
- Acrylic (Plexiglas): Though stronger than standard glass, acrylic is significantly more brittle than polycarbonate and is prone to cracking under the repeated, blunt-force attacks common in forced entry attempts.
- Polycarbonate: Its ductile nature allows it to withstand extreme punishment. This inherent flexibility is the source of its formidable impact resistance.
Polycarbonate’s primary security advantage is its ability to endure violent, sustained force. With an impact resistance approximately 250 times greater than glass and 30 times greater than acrylic, it is the preferred material for applications demanding high levels of security, from riot shields to engineered architectural protection.
Why a Standalone Polycarbonate Sheet Fails
Despite its strength, a raw sheet of polycarbonate has significant limitations that make it unsuitable as a direct replacement for glass in most architectural applications. These vulnerabilities must be addressed by an engineered system.
- Low Abrasion Resistance: Polycarbonate is a soft material that scratches easily. Without a protective hard coat, routine cleaning or airborne particulates can quickly degrade its optical clarity and compromise the building’s aesthetic.
- UV Degradation: When exposed to sunlight, standard polycarbonate will yellow, haze, and become brittle over time. This process not only ruins the building’s appearance but also diminishes the material’s impact-resistant properties.
- High Thermal Expansion: Polycarbonate expands and contracts with temperature changes at a much higher rate than glass or aluminum. If installed directly into a standard window frame, this movement can cause the sheet to bow, buckle, or pull away from its mounting, creating a security gap.
Focusing on the material while ignoring the system is a critical mistake. An attacker does not need to break the glazing if they can compromise the frame holding it. Under sustained attack, force is transferred directly to the frame’s weakest points, such as the anchors and mullions. An assailant can often pry or push a simple polycarbonate sheet out of a standard frame, bypassing the glazing entirely. True security cannot come at the expense of architectural integrity.
Architectural Integration Without Aesthetic Compromise
For architects and discerning property owners, security enhancements must not detract from the original design. A professionally engineered retrofit system distinguishes itself by offering robust protection that integrates seamlessly into the existing structure, providing security that is felt, not seen.

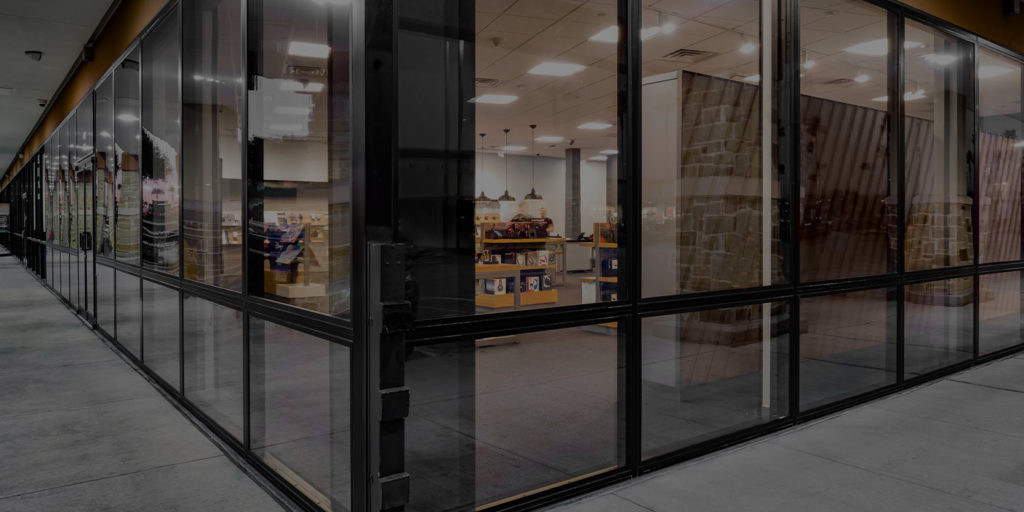

The Virtually Invisible Solution for Retrofit Window Security
The near-invisibility of a high-performance retrofit system is a core principle of its design. By mounting a clear shield over the existing glass using a custom-extruded aluminum frame, the system blends directly into the building’s window and door mullions.
This seamless integration is achieved through several key design factors:
- Custom Fabrication: Each system is fabricated to the exact dimensions of the existing glazing pocket, ensuring a precise fit with no awkward gaps or overlaps.
- Color-Matched Framing: The perimeter frame is finished to match the color and texture of the existing window mullions, making it appear as an original component.
- Optical Clarity: The advanced polycarbonate glazing possesses exceptional light transmission, ensuring views remain clear and undistorted.
A significant advantage of this approach is that it leaves the original glass in place. For complex curtain wall and storefront systems, removing and replacing large, custom insulated glass units (IGUs) is an expensive and disruptive process. A retrofit system preserves the original building envelope, including its thermal performance and aesthetic properties, while adding a formidable layer of protection.
Visual Profile: Engineered Systems vs. Obtrusive Alternatives
When evaluated on aesthetics, the difference between an engineered retrofit system and conventional security measures is stark.
- Engineered Retrofit System: Presents a clean, unobtrusive profile that is nearly invisible. It maintains the building’s original architectural lines and open appearance.
- Security Window Film: While less obtrusive than bars, film is prone to scratching, peeling, or discoloration over time, degrading visual quality. It offers minimal protection against determined forced entry.
- Security Grilles and Shutters: These are the most visually intrusive options. They obscure views, block light, and communicate a message of high risk that can deter customers and negatively impact property value.
Comparing Glazing Solutions: An Analysis for Specifiers
Choosing the right security glazing requires an evaluation of the entire engineered system, not just the material. This analysis compares leading architectural security solutions to clarify their distinct capabilities in mitigating specific threats.
Engineered Polycarbonate Systems vs. Laminated Glass
Laminated glass consists of a polymer interlayer, typically polyvinyl butyral (PVB), bonded between two lites of glass. When struck, the glass fractures, but the interlayer holds the shards together. This makes it effective against single impacts and blast events, but its primary function is safety. Repeated, focused attacks can fatigue the interlayer, allowing an intruder to create an opening.
Engineered polycarbonate systems, in contrast, are designed for active threat defeat. These patented retrofit solutions use a polycarbonate shield, a cushioned standoff, and an anchored frame to create an assembly that flexes to absorb massive amounts of kinetic energy. While laminated glass breaks to absorb impact, an engineered polycarbonate system is designed not to break at all, defeating the attack and providing a significantly higher level of forced entry prevention.
Engineered Polycarbonate Systems vs. Security Film
Security film is an adhesive polyester layer applied to the interior surface of glass. Its purpose is to hold glass fragments together, delaying an intruder for a few seconds. It is an improvement over unprotected glass for deterring opportunistic smash-and-grab attempts but has significant limitations. Its effectiveness depends entirely on its adhesive bond and the strength of the window frame.
An engineered polycarbonate system provides a fundamentally different level of protection. The polycarbonate shield is hundreds of times stronger than film and absorbs impact energy across its entire surface. More importantly, the system is mechanically anchored to the window mullion, creating a unified structure that can withstand a prolonged, determined attack. For applications requiring true forced entry prevention, security film is an insufficient specification.
Understanding ASTM and UL Performance Standards
Performance claims are meaningless without third-party validation. For specifiers, two of the most critical testing standards are:
- ASTM F1233: This standard outlines test methods for the forced entry resistance of security glazing systems. It simulates aggressive, tool-based attacks, providing a clear measure of how long a system can deny entry.
- UL 752: This is the standard for ballistic-resistant equipment. It defines eight levels of protection against various firearm threats. A UL 752 rating only addresses ballistic stopping power and does not certify a system’s resistance to forced entry.
True security is often achieved when a system combines a UL 752 rating for ballistic resistance with a high ASTM forced entry rating.
Conclusion: A New Paradigm for Architectural Security
Resilience is not found in a sheet of plastic but is achieved through a holistic, engineered system that integrates seamlessly with a building’s architecture. This modern approach moves beyond simple material substitution and embraces a new paradigm for security glazing.
An engineered system provides advantages a material-first approach cannot. It offers comprehensive threat defeat, architectural preservation, engineered longevity, and certified performance. By leveraging advanced retrofit glazing systems, windows and storefronts are no longer liabilities but integral parts of a building’s defensive posture. This strategy turns a weak point into a hardened, yet transparent, element of the security envelope.
To adopt this approach, specifiers must begin with a detailed threat, vulnerability, and risk assessment (TVRA) to identify specific risks. From there, consulting with a specialist in engineered security glazing systems is critical to match the right solution to the building’s conditions. Finally, specifications should shift from material properties to system-level performance, demanding certified assemblies that meet standards like UL 752 for ballistic resistance or ASTM F1233 for forced entry prevention. This ensures the delivery of a complete, proven solution that protects people and property without compromise.
Frequently Asked Questions
Why can’t I just replace my window glass with a polycarbonate sheet?
Simply swapping glass for a polycarbonate sheet is a flawed security strategy. Standard window frames are not engineered to hold a flexible material that expands and contracts significantly with temperature changes. An attacker can often pry or push the sheet out of the frame. Furthermore, raw polycarbonate scratches easily and can yellow from UV exposure. A complete, engineered system is required to address these weaknesses and provide reliable protection.
Will a retrofit security glazing system ruin my building’s appearance?
No. High-performance retrofit systems are designed to be virtually invisible. They are custom-fabricated to fit existing window openings precisely, and the mounting frames are color-matched to the building’s mullions. The polycarbonate used offers high optical clarity, preserving views and the original architectural aesthetic.
What is the difference between ballistic resistance and forced entry protection?
Ballistic resistance refers to a material’s ability to stop bullets, as certified by standards like UL 752. Forced entry protection measures a system’s ability to withstand a physical attack from tools like hammers, axes, or pry bars, often tested under standards like ASTM F1233. The two are not the same, and a truly secure system will often carry ratings for both types of threats.
Do polycarbonate security systems turn yellow?
While standard polycarbonate can yellow and degrade with UV exposure, professional security glazing systems use polycarbonate with a specialized hard coat. This coating provides advanced UV protection to prevent yellowing and hazing, while also offering high levels of abrasion resistance to prevent scratching and maintain optical clarity.
