Safe Room Construction: Essential Features and Best Practices
How to Build a Code-Compliant Safe Room Using Bullet-Resistant Wall Panels and Doors
Safe rooms are fortified areas designed to protect occupants from external threats such as crime or natural disasters. Unlike panic rooms, which are often makeshift and unregulated, safe rooms meet specific construction standards. Their use is rising in both homes and commercial buildings due to increased safety concerns.
From hurricanes to home invasions, safe rooms provide a refuge when seconds count. A safe room is a specially designed, reinforced space intended to offer life-saving protection during extreme threats. It differs from a panic room, which is usually a temporary hiding spot without structural reinforcements or compliance with national standards.

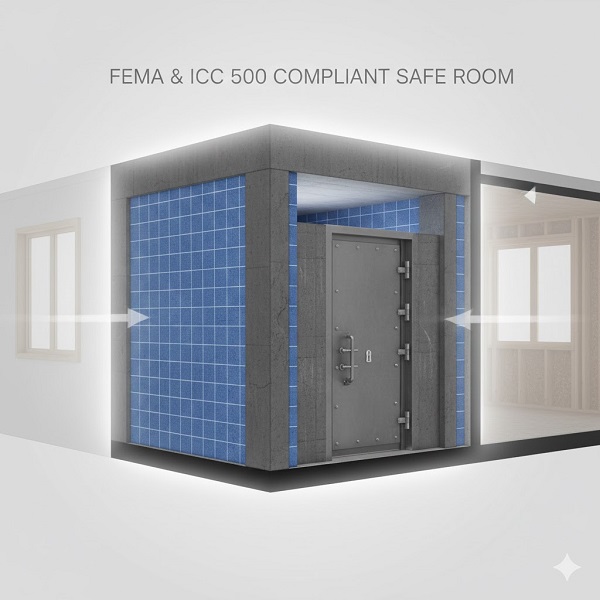

Safe rooms must meet FEMA (Federal Emergency Management Agency) and ICC (International Code Council) safety codes, offering verified protection against forced entry and projectiles. Their use is increasing in homes for personal security and in commercial settings to protect staff and clients.
This is a comprehensive guide to safe room design, construction, materials, and safety protocols, highlighting bullet-resistant fiberglass panels and doors as essential components.
Understanding Safe Room Standards and Guidelines
Before building or retrofitting a safe room, it’s critical to understand the official guidelines that define safety standards. These regulations ensure the room performs as expected during emergencies.
FEMA and the ICC have developed detailed documents that outline these requirements for both residential and commercial use.
FEMA Guidelines
FEMA outlines safe room criteria in documents P-361 and P-320. These documents serve as national benchmarks for designing and constructing protective spaces. They offer guidance for both new constructions and retrofits in residential or commercial settings.
Key requirements include resistance to extreme winds, reinforced structural integrity, and reliable protection against flying debris or projectiles. The documents also specify that FEMA-compliant safe rooms must be easily accessible, provide adequate ventilation, and allocate sufficient space for each occupant.
These standards ensure consistency, reliability, and effectiveness in emergency scenarios.
Building Codes and Standards
Safe room building codes and standards are outlined in ICC 500 standards, developed by the International Code Council and FEMA. These standards work alongside FEMA’s safe room guidelines to ensure that safe rooms meet structural and operational benchmarks.
ICC 500 covers everything from wind loads and impact resistance to door durability, anchorage, and air exchange requirements. The document also outlines testing protocols for materials and components.
Compliance with ICC 500 ensures safe rooms can endure the forces of severe weather events or external attacks. Building officials and architects frequently utilize these standards during the permitting and inspection processes.
Adhering to both FEMA and ICC 500 guidance is essential for a safe room that is protective and legally compliant. These guidelines cover structural loads, door resistance, and ventilation.
Local building codes may have additional requirements, depending on geographic risks such as flooding or seismic activity.

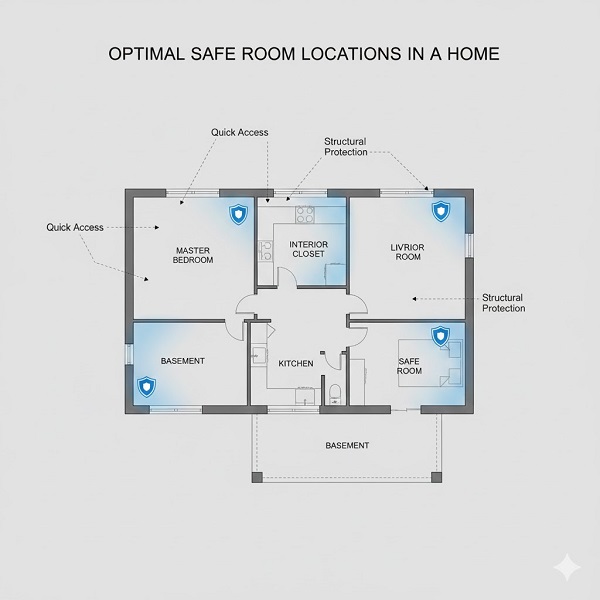

Optimal Location Selection for Safe Rooms
Safe room location selection is a foundational step in safe room design. Proper placement can determine the room’s accessibility and effectiveness during emergencies. Location strategies vary between residential and commercial applications and depend on environmental risks and building structure.
How to Design a Safe Room in Your Home
In homes, safe rooms should be easy to access during emergencies. Placement should account for quick access, especially during night hours or when occupants are asleep. Locations that are structurally secure and centrally located are most effective.
Ideal safe room placement includes:
• Basements, which offer natural protection and structural strength
• Interior rooms on the ground floor, away from windows and exterior walls
• Closets or utility rooms that can be reinforced with minimal remodeling
• Spaces near bedrooms, providing quick access during nighttime threats
Above-ground safe rooms are acceptable if they use reinforced materials like concrete or bullet-resistant fiberglass panels. These materials must meet FEMA and ICC 500 structural criteria.
How to Design a Safe Room in Commercial and Institutional Settings
For businesses, schools, or hospitals, safe rooms must integrate seamlessly with existing architecture. Their design must accommodate regular operations while remaining ready for emergencies.
ADA compliance ensures that everyone, including those with disabilities, can reach safety without delay.
Key considerations include:
• Accessibility, with wide doorways and minimal obstructions for mobility devices• Proximity to high-occupancy areas like classrooms, offices, or lobbies
• Integration into existing floorplans, such as converting storage rooms or meeting spaces
• Visibility and signage, helping users locate the safe room quickly in high-stress situations
• Durable finishes, that do not draw attention but can withstand abuse in panic scenarios. Accessibility under ADA regulations is essential.
Design should ensure all individuals, including those with disabilities, can reach safety quickly.
Site-Specific Factors
Site-specific environmental factors can greatly influence safe room design and placement. Builders should consult local data and professional evaluations during planning.
Important factors to evaluate:
• Soil stability, especially in earthquake-prone or erosion-sensitive regions
• Flood zones, which may require elevating the room or sealing below-grade installations
• Proximity to utility lines, avoiding interference with water, gas, or electrical service
• Wind exposure, which influences wall and anchoring requirements
• Building orientation and layout, to ensure internal access and structural support
Avoid placing safe rooms against unsecured exterior walls or in locations vulnerable to collapse or breach. Avoid areas near windows or external walls unless they are reinforced. Consult local geotechnical data and floodplain maps before construction.
Structural Design and Materials
The strength of a safe room lies in its construction. Selecting the best materials for bulletproof safe rooms is crucial to withstand physical and ballistic threats. This section outlines best practices for walls, ceilings, doors, and windows using certified and durable materials.
Wall and Ceiling Construction
Walls and ceilings must resist high-impact forces and ballistic threats. Reinforced design and material selection are vital to performance under stress. These structural components must be integrated into the building’s overall load-bearing system.
Recommended materials and practices include:
• Reinforced concrete, offering exceptional strength and fire resistance
• Reinforced masonry units, a practical and durable alternative in both residential and commercial builds
• Advanced fiberglass composites, which are lightweight, corrosion-resistant, and easier to retrofit
• Steel reinforcements, often used in hybrid systems, but typically heavier and harder to install than fiberglass
Best practices for durability and resilience:
• Continuous load paths, which link walls, floors, and roof to distribute forces from impacts
• Anchoring systems, to secure the safe room foundation and prevent structural displacement
• Minimal openings and reinforced framing, to reduce vulnerability and contain structural pressure during blasts or forced entry attempts
Bullet-Resistant Wall Panels
Bullet-resistant panels are a critical component in protecting against firearm threats. These panels can be installed within walls to prevent bullets from penetrating through to occupants.
While both fiberglass and steel are used, fiberglass offers several practical advantages.
Fiberglass panel benefits:
• Lightweight and easier to transport and install
• Non-corrosive, ideal for humid or chemically harsh environments
• Easier to cut and retrofit, reducing labor time
• Chemically stable and non-conductive, enhancing safety in multi-use spaces
UL 752 rating levels define a panel’s resistance:
• Level 1–2: Designed for low-caliber handguns
• Level 3–5: Suitable for most residential and commercial applications
• Level 6–8: Resists higher-velocity firearms, used in sensitive facilities
Choosing the correct level depends on anticipated threats and regulatory requirements. Fiberglass panels meet many needs without the downsides of steel weight or rust.
Fiberglass is lighter and easier to install than steel. It also does not corrode and is chemically resistant. Panels are rated by UL 752 standards, ranging from Level 1 (handguns) to Level 8 (rifles). Most residential applications use Levels 3–5.
Doors and Windows
Doors and windows are vulnerable points in any structure. To preserve the integrity of a safe room, these components must meet the same standards as the walls.
Bullet-resistant door options:
• Solid-core wood with ballistic inserts, offering both security and a residential appearance
• Laminated wood with fiberglass reinforcement, balancing aesthetics and strength
• Steel-clad doors, best for institutional or government buildings where appearance is less critical
Window protection options:
• Laminated glazing, which sandwiches a polyvinyl layer between glass sheets
• Polycarbonate layers, known for their high-impact resistance and lightweight composition
• Frameless retrofits, which can be used to enhance existing windows without major structural changes
All entries and openings should be installed in reinforced frames. Locking mechanisms must be tamper-proof and accessible under stress. Doors and windows rated under UL 752 should match or exceed the rating of wall panels.
Look for UL-rated solid-core or laminated wood with ballistic protection. Windows, if required, should feature laminated glazing or polycarbonate layers. All openings should be anchored in reinforced frames.
Safe Room Safety Protocols and Emergency Features
Safe rooms must do more than shield occupants—they must support survival and communication during emergencies. This section explores essential systems and supplies that improve safety, comfort, and response efficiency inside a secure environment.
Communication Systems
Effective communication is critical during emergencies. Safe rooms should be equipped with reliable tools for contacting first responders and coordinating with others.
Recommended systems include:
• Hardwired landline phones, which often work when cell networks fail
• Two-way radios, useful in both residential and commercial settings
• Cell signal boosters, to enhance reception in reinforced or underground spaces
• Emergency intercom systems, especially in facilities with large staff or student populations.
Communication helps coordinate emergency responses and alert authorities. Intercoms are useful in commercial facilities.
Ventilation and Air Filtration
Maintaining air quality and circulation is essential in sealed environments. Safe room ventilation and communication systems should allow airflow without compromising the safe room’s structural integrity.
Best practices include:
• HEPA filters, which remove airborne particles, allergens, and contaminants
• Positive pressure systems, that push air out to prevent contaminants from entering
• Manually operated vents, useful in off-grid or emergency power conditions
• Tamper-proof ducting, to prevent outside interference or sabotage. Install mechanical ventilation systems that include HEPA filters.
Positive pressure setups help keep contaminants out. Ensure systems are protected from tampering or damage.
Emergency Supplies and Equipment
Supplies must support occupants for at least 72 hours. Stock levels should reflect the number of expected users and the most likely threats.
Recommended emergency items:
• Drinking water and non-perishable food, enough for each person for three days
• Battery-operated or solar lighting, with extra batteries
• First-aid kit, including medications, antiseptics, and bandages
• Fire extinguisher, rated for electrical and chemical fires
• Portable toilet or sanitation supplies, especially for rooms designed for extended use
• Blankets, clothing layers, and personal hygiene items for comfort during prolonged occupancy, flashlights, first-aid kits, and fire extinguishers
Consider portable toilets for longer use. Include solar or battery-powered lighting and backup power sources.
Maintenance and Regular Inspections
Maintaining a safe room is just as important as building one. Ongoing inspections and plan updates ensure the space remains functional and ready. This section outlines inspection procedures and protocols for keeping supplies and systems in top condition.
Routine Checks
Routine inspections keep the safe room functional and dependable during emergencies. These checks should occur on a consistent schedule to identify issues before they become problems.
Inspection tasks include:
• Visual inspection of walls, ceilings, and entry points for cracks, rust, or damage
• Testing communication devices to confirm they are charged and operational
• Checking ventilation systems, including air filters and positive pressure units
• Inspecting doors and locks, ensuring proper alignment and secure closure
• Reviewing anchor points and structural connections, especially after nearby construction or natural events. Look for cracks, corrosion, or seal failures
• Test doors, communication tools, and ventilation units monthly
• Replace filters and worn equipment as needed.
Updating Emergency Plans
Emergency preparedness plans must evolve in response to changes in household members, building usage, or available resources. Regular reviews and practice drills improve response times and confidence during real emergencies.
Update activities should include:
• Quarterly emergency drills, covering various scenarios (e.g., break-ins, severe weather)
• Reviewing safe room access routes, especially if new furniture or remodeling alters the path
• Checking supply expiration dates, including food, water, and medications
• Updating contact lists, emergency numbers, and communication instructions
• Training all users, including children or new staff, on how to enter and secure the room quickly. Review access plans with all occupants. Check expiration dates on stored food and medications. Keep contact numbers and safety procedures visible.
Real-World Applications
Real-world implementations show how safe room strategies perform in various environments. These examples—from private homes to institutional buildings—highlight how bullet-resistant materials and strategic planning improve occupant safety and preparedness.
Residential Safe Room Implementations
Many homeowners across the U.S. are transforming small interior spaces—like closets or utility rooms—into certified safe rooms. Using lightweight bullet-resistant fiberglass panels and reinforced doors, these retrofits offer protection without significant remodeling.
Key takeaways:
• Fiberglass panels enable fast installation with minimal structural disruption
• Closet or utility spaces are ideal starting points for retrofit projects
• Multifunctional use (weather and security) increases return on investment
• Compliance with FEMA and ICC standards ensures long-term protection and peace of mind
Commercial and Institutional Examples
Schools, hospitals, and government buildings have increasingly adopted bullet-resistant wall systems to protect occupants during active threats. Fiberglass wall panels offer a discreet yet powerful solution.
Real-world benefits include:
• Improved occupant safety without creating a prison-like appearance
• Integration into new and existing designs, including lobbies, reception areas, and corridors
• Increased readiness during lockdown procedures, by reinforcing key shelter locations
• Long-term durability and low maintenance, reducing lifetime costs and ensuring ongoing effectiveness.
These solutions enhance security while maintaining a welcoming design. According to DefenseLite, such systems allow architectural flexibility without sacrificing safety.
Final Considerations for Safe Room Design
Designing a safe room is a serious commitment to the safety of occupants. It requires thoughtful planning, material selection, and strict adherence to engineering standards.
A well-constructed safe room can protect against armed threats, severe weather, and structural failure during a crisis.
To ensure effectiveness:
• Follow FEMA and ICC 500 standards for structural performance, ventilation, and accessibility
• Use certified bullet-resistant fiberglass panels, which provide protection without the weight and installation challenges of steel
• Incorporate emergency systems such as communication tools, HEPA ventilation, and self-contained supplies
• Maintain the space regularly, inspecting doors, walls, filters, and emergency items
Safe rooms are not just added features—they are critical components in a larger safety strategy. When properly designed and maintained, they offer peace of mind and life-saving protection during the unexpected.
Emergency features like ventilation, communication, and supplies are essential. Routine maintenance ensures readiness. With the right design, a safe room becomes a dependable last line of defense.
